Location for the spring to brake switch

In the Shed
1

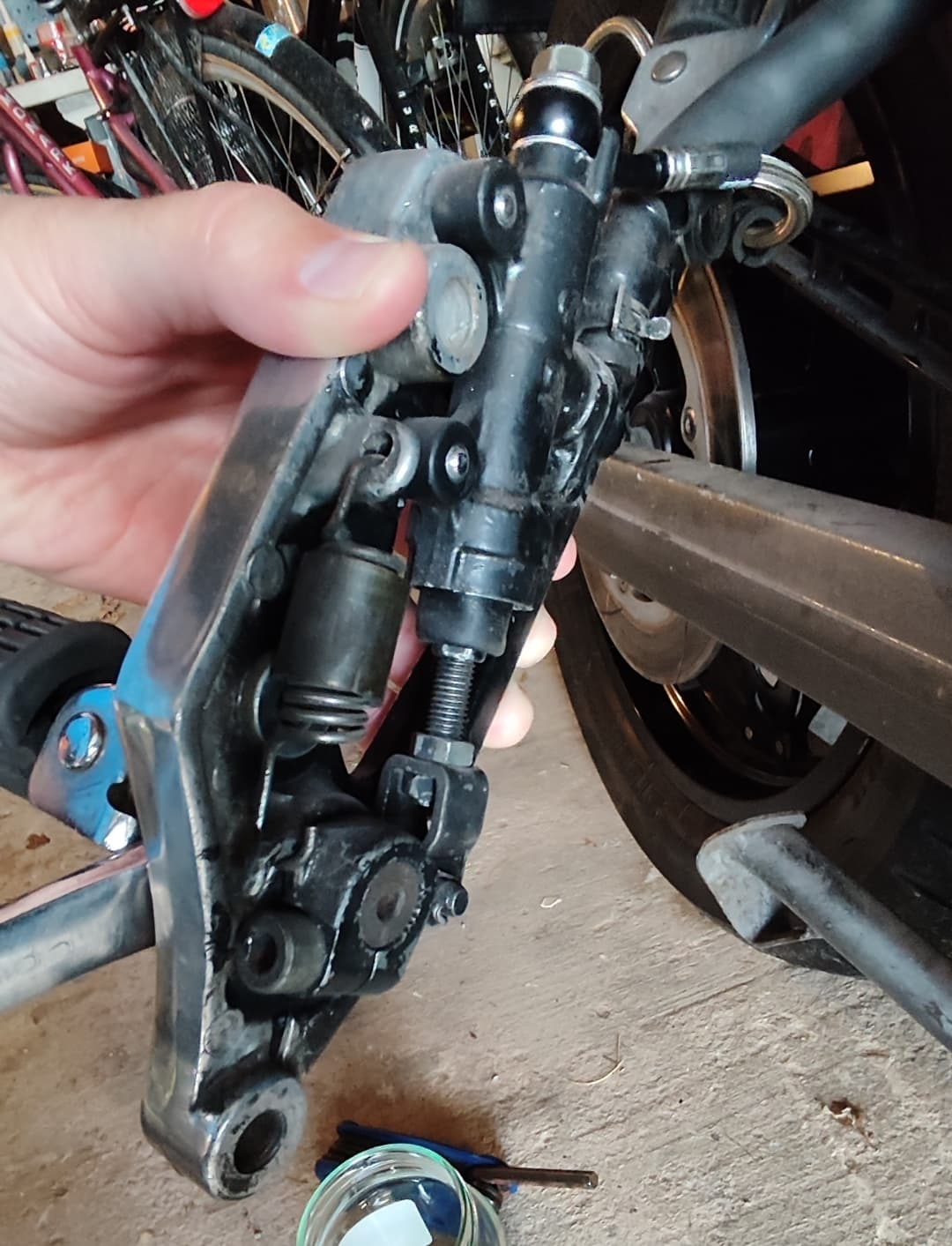

Ok, have been trying to get the brake light to work for the foot brake on my VF1000FE 1984. Turns out the spring is missing.
But I cant figure out the location where the spring should be mounted on the foot brake mechanisms.
Can somebody point me to the location? :face_with_monocle:

1000010456
10000104561080Ɨ1413 151 KB

2

Whereā€™s the brake light switch..? There should be a fine spring between the pedal ā€œhookā€ and the switch.

Smithy.

3

Yes, itā€™s a VF1000FE 1984 as I wrote in the first post :sweat_smile:

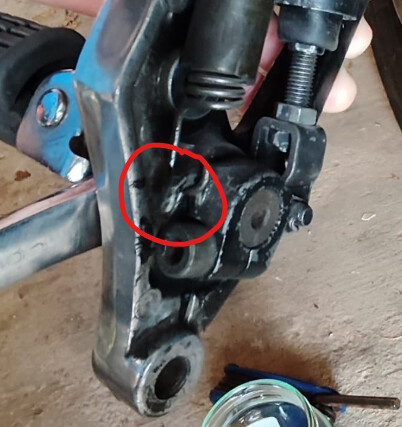

Do you mean the spring should be mounted on this hook thatā€™s already hooked to the return spring of the foot brake pedal?

image402Ɨ427 55.2 KB

4

Thatā€™ll teach me for not reading properly..!

Yes, the other end of the spring goes to the switch itself..

Smithy.
