Starter Solenoid replacement wiring

In the Shed
1

Hi all - back working on my Bol d’Or and want to replace starter solenoid as it’s intermittent (assuming it’s the solenoid).

The one I got a few years back is different to the original - so not sure on wiring…

Question is - the B and M connections are obvious - but the connector block?

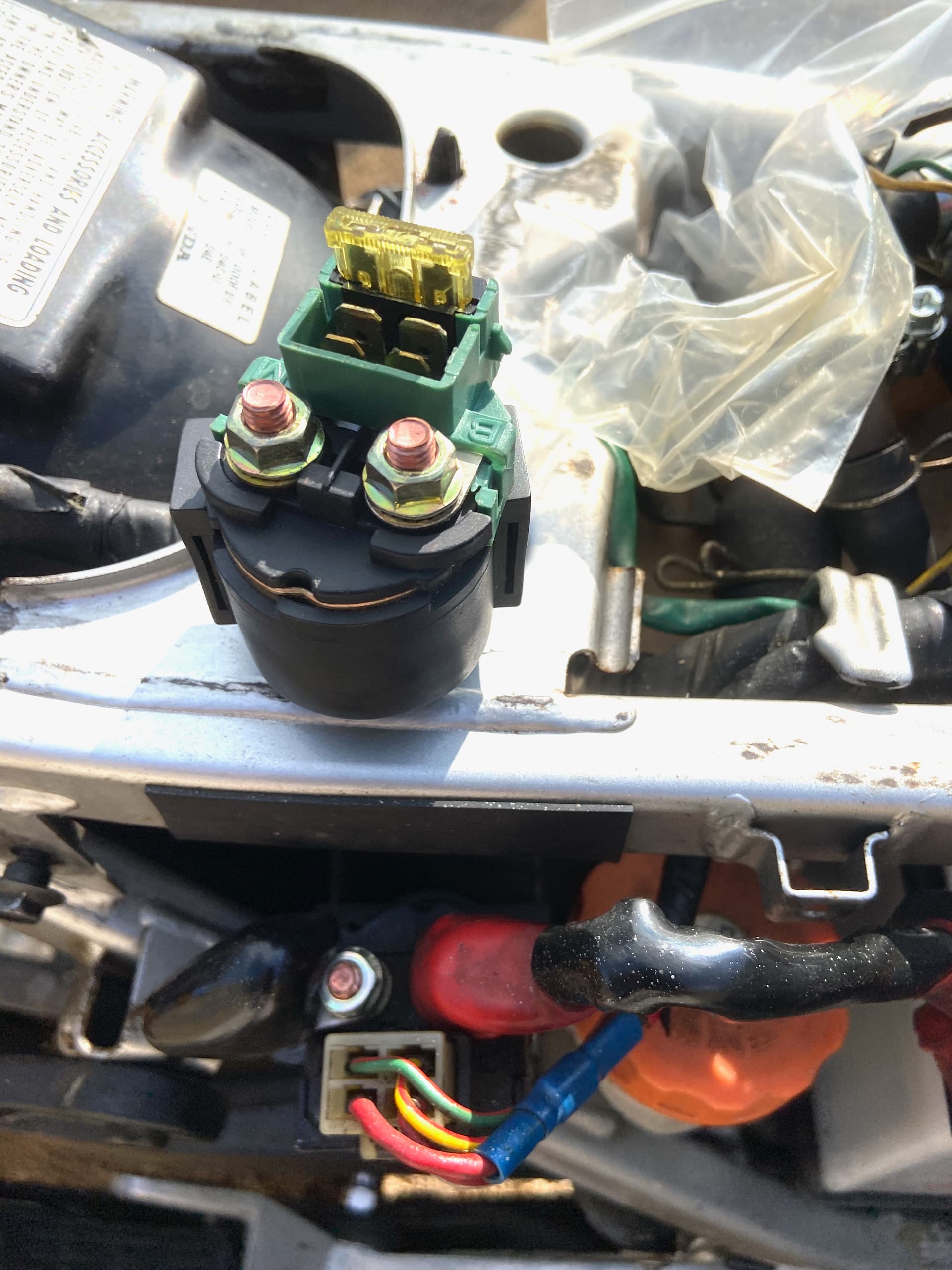

IMG_7045
IMG_70451920×2560 328 KB

Anyone fitted a similar unit?

Ta,

Iain

2

The red and the red/yellow wires should connect to the B terminal,the other two are the coil wires.The problem with the solenoid you have is the terminals for the battery and the starter are the wrong way round.EBay item. 175297789014 Is the one I have used it was £15.

3

Cheers Bif - duly ordered… :+1:

Much appreciated!

Iain
